Frame Latch Adjustment Screws

To adjust the tension on the Portola Frame Latch

You will need to loosen the Grub Screw on the Frame Latch with a 2 mm allen key. NOTE: You do not need to completely remove the screw.
Turn the Latch Adjustment Screw clockwise to tighten or counter-clockwise to loosen the tension on the Frame Latch.
Reset the Grub Screw to prevent the Latch Adjustment Screw from moving and altering the tension adjustment.
The Frame Latch should have a snug fit in the closed position after adjusting the Latch Adjustment Screw.

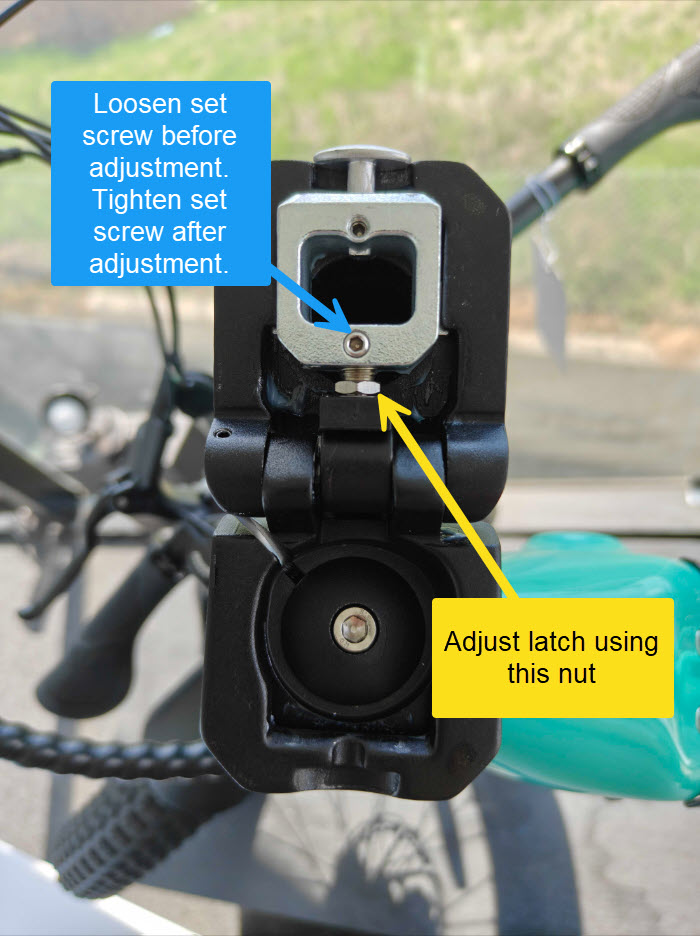

You will need to loosen the Set Screw on the Frame Latch with a 2 mm allen key. NOTE: You do not need to completely remove the screw.
Turn the Latch Adjustment nut clockwise to loosen or counter-clockwise to tighten the tension on the Frame Latch
Reset the Grub Screw to prevent the Latch Adjustment Screw from moving and altering the tension adjustment.
